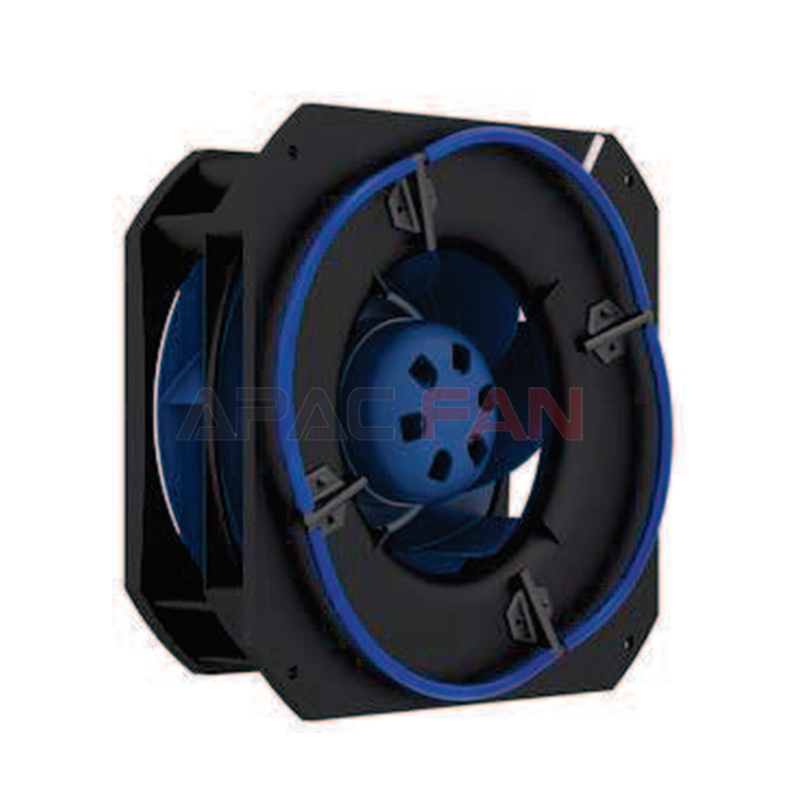

GR22V-4IP.ZC.BR 178089/A02 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：GR22V-4IP.ZC.BR 178089/A02
Fan Type：Centrifugal Fan
Rated Voltage(V)：1~200-240
Size(mm)：220
Max.Air Flow(m³/h)：1480
Max.Pressure(Pa)：810
Input Power(W)：170
Speed(rpm)：2810

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

GR22V-4IP.ZC.BR 178089/A02

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

Size(mm)：

Max.Air Flow(m³/h)：

1480

Max.Pressure(Pa)：

810

Input Power(W)：

170

Speed(rpm)：

2810

Noise(db)：

Description

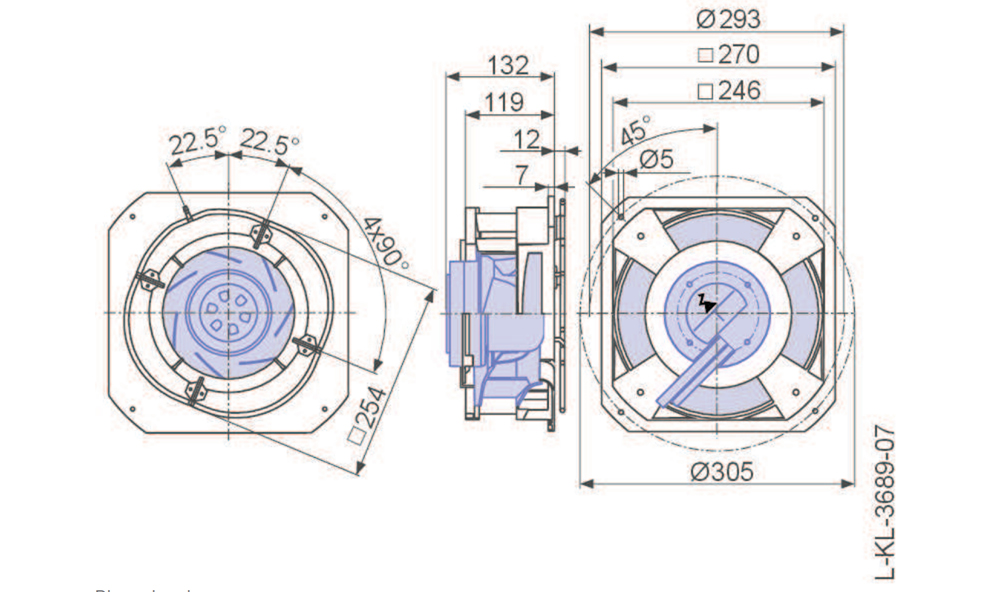

GR22V-4IP.ZC.BR 178089/A02 Ziehl-abegg Specification drawing：
